Diamond and CBN tools for machine building, glass, woodworking and other industries.
AW Cilindrical diamond points
Application:

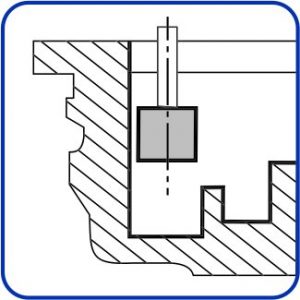

Grinding of cylindrical surfaces.

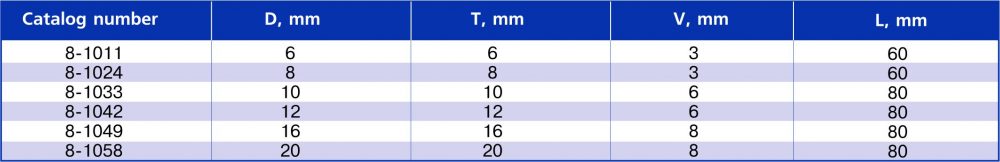

Example of an order for a diamond mounted point AW (catalog number 8-1042), parameters 12-12-6-80 with diamonds AC4 grit size D107, concentration 100 %, with resin bond R5-01:
8-1042 AW 12-12-6-80 AC4 D107 100% R5-01
The plant produces the above-mentioned shapes and dimensions of grinding points made with Cubic Boron Nitride (CBN).
Example of an order for a CBN point shaped AW (catalog number 8-1042) parameters 12-12-6-80, CBN type is CBN1, grit size B107, concentration of CBN is 100%, resin bond R1-05:
8-1042 AW 12-12-6-80 CBN1 B107 100% R1-05
Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
