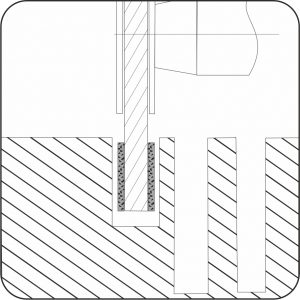

9A3. FLAT GRINDING WHEELS WITH DOUBLE-SIDED RECESS
Application:
used for sharpening and finishing of carbide tools, machining of glass, ceramics, quartz, semiconducting materials.

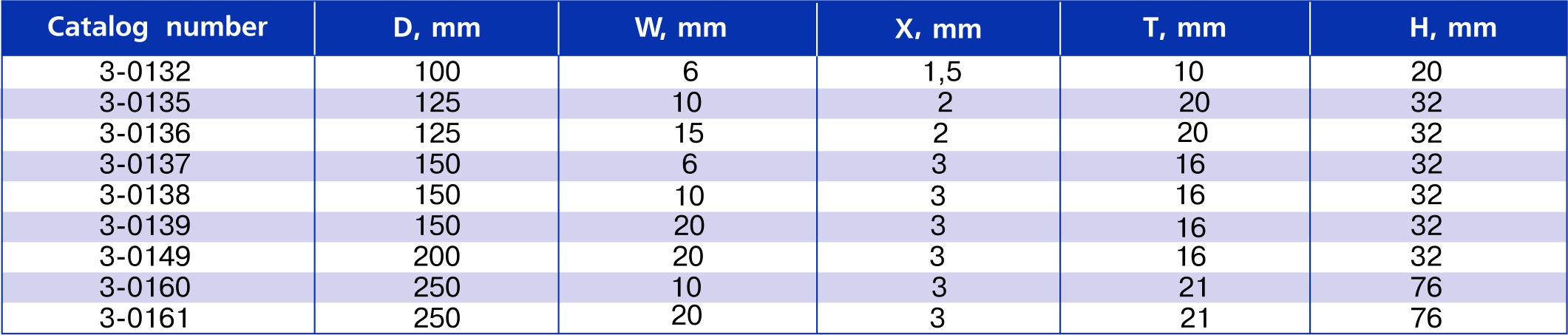

Example of an order for a grinding wheel 9A3 (catalog number 3-0138), parameters 150-10-3-16-32 with diamonds AC4 grit size D126, concentration 100 %, with resin bond R5-01: 3-0138 9A3 150-10-3-16-32 AC4 D126 100% R5-01
The plant produces the above-mentioned shapes and dimensions with Cubic Boron Nitride (CBN).
Example of an order for a CBN wheel 9A3 (catalog number 3-0138) parameters 150-10-3-16-32, CBN type is CBN1, grit size B126, concentration of CBN is 100%, resin bond R1-05: 3-0138 9A3 150-10-3-16-32 CBN1 B126 100% R1-05
Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
