4А2. DISH GRINDING WHEELS
Application:

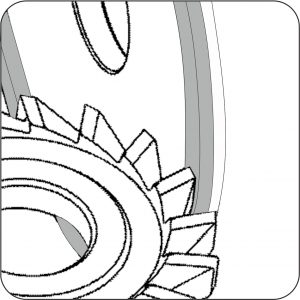

used for sharpening and finishing of back surface of multiblade tools.

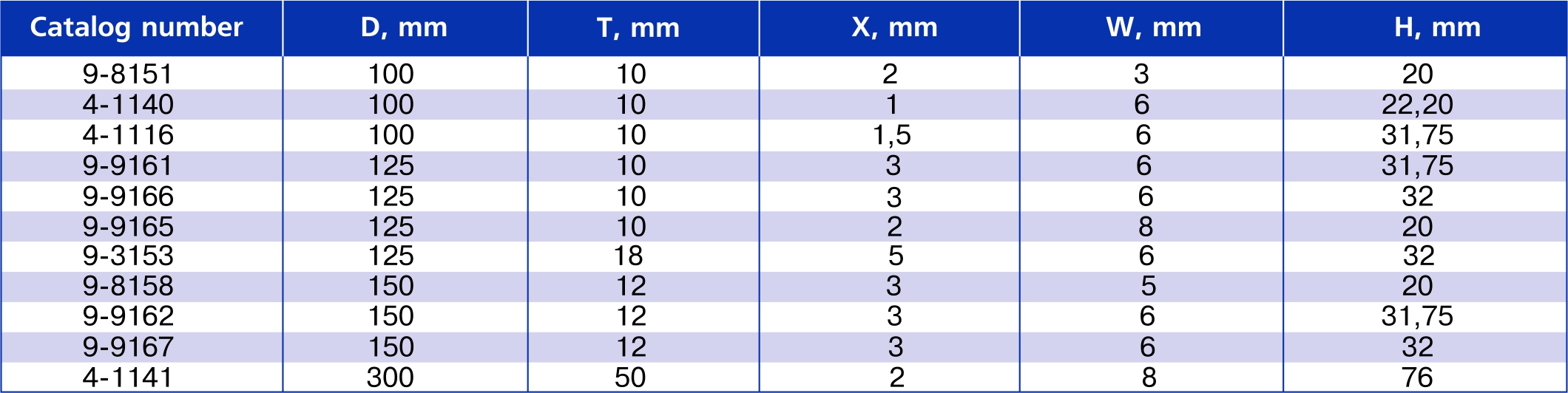

Example of an order for a wheel 4A2 (catalog number 9-8151), parameters 100-10-2-3-20 with diamonds ACH grit size M63, concentration 100 %, with resin bond R5-01: 9-8151 4A2 100-10-2-3-20 ACH M63 100% R5-01
The plant produces the above-mentioned shapes and dimensions with Cubic Boron Nitride (CBN).
Example of an order for a CBN wheel 4A2 (catalog number 9-8151) parameters 100-10-2-3-20, CBN type is CBN1, grit size B126, concentration of CBN is 100%, resin bond R1-05: 9-8151 4A2 100-10-2-3-20 CBN1 B126 100% R1-05
Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
