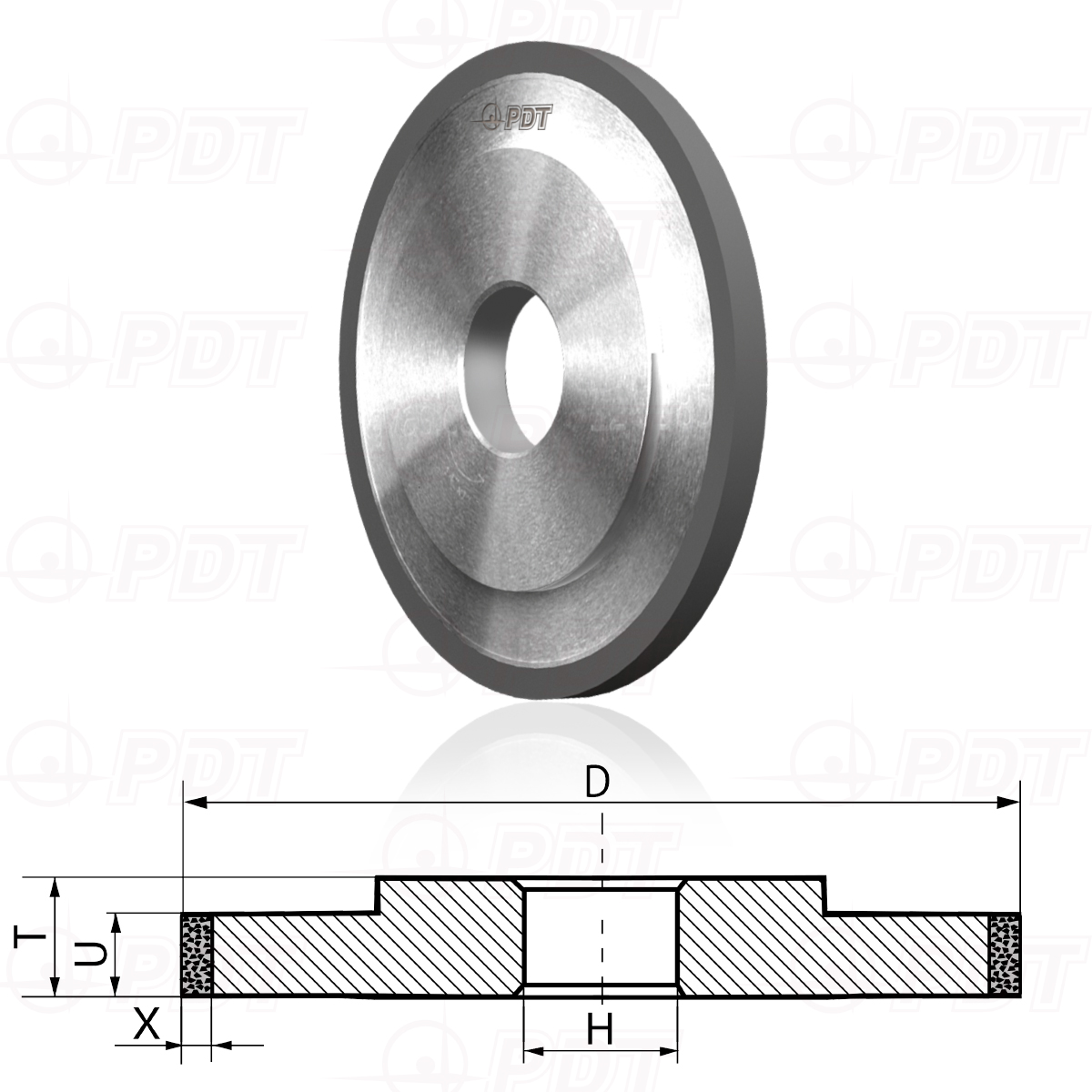

3А1. STRAIGHT GRINDING WHEELS
Application:
used for machining of conical, cylindrical and flat surfaces.
Example of an order of a grinding wheel 3A1 (catalogue number 9-5030), parameters 150-10-2,0-3-31,75, with diamond AC6 grit size D54, concentration 100 %, with resin bond R5-01: 9-5030 3А1 150-10-2,0-3-31,75 АС6 D54 100% R5-01

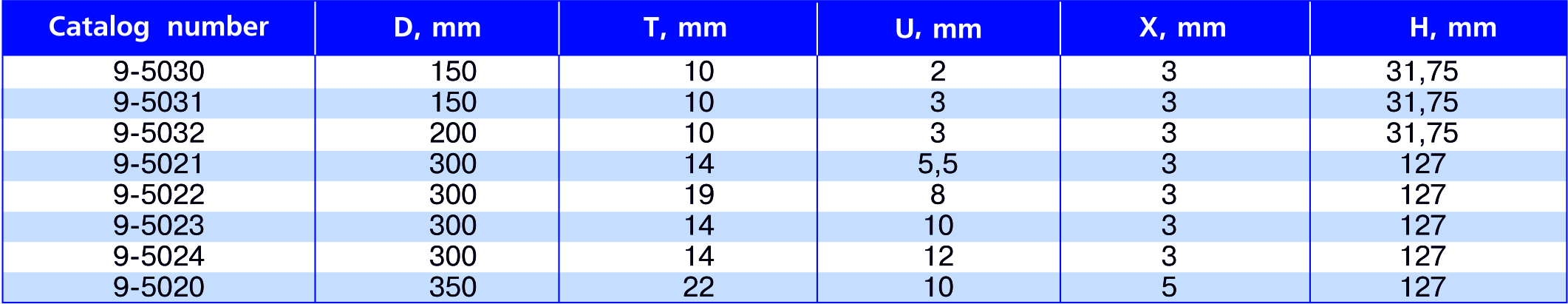

The plant produces the above-mentioned shapes and dimension types of Cubic Boron Nitride (CBN).
Example of an order of a straight shaped CBN wheel 3A1 ( catalog number 9-5030) parameters 150-10-2,0-3-31,75, CBN type is CBN1, grit size B54, concentration of CBN is 100%, resin bond R1-05: 9-5030 3A1 150-10-2,0-3-31,75 CBN1 B76 100% R1-05
Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
