14U1. THREE-SIDED FLAT GRINDING WHEELS
Application:
used for grinding carbide workpieces (gashing).

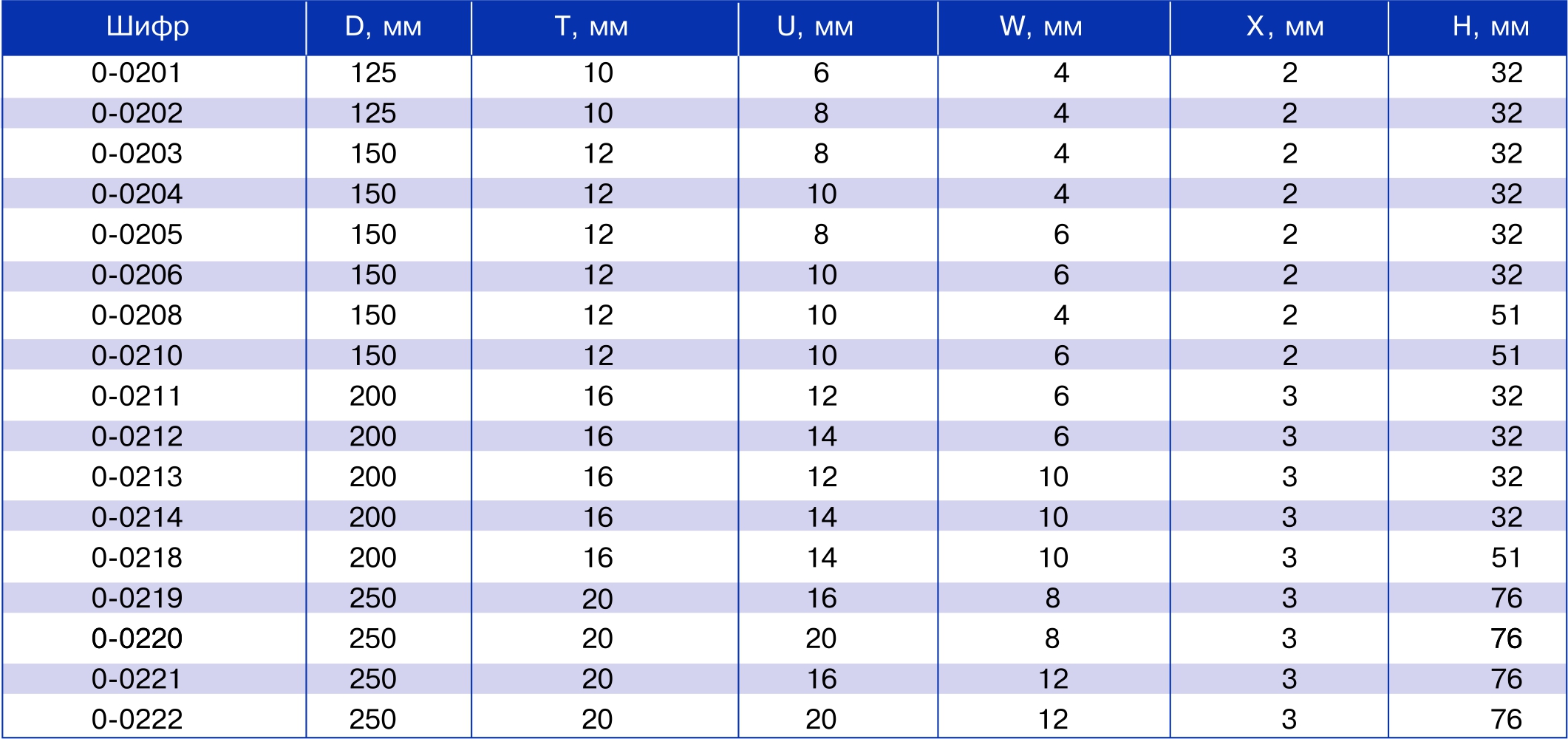

Example of an order of a wheel 14U1 (catalog number 0-0206), parameters 150-12-10-6-2-32 with diamonds AC4 grit size D107, concentration 100 %, with resin bond R5-01: 0-0206 14U1 150-12-10-6-2-32 AC4 D107 100% R5-01
The plant produces the above-mentioned shapes and dimensions with Cubic Boron Nitride (CBN).
Example of an order of CBN wheel 14U1 (catalog number 0-0206) parameters 150-12-10-6-2-32, CBN type is CBN1, grit size B107, concentration of CBN is 100%, resin bond R1-05: 0-0206 14U1150-12-10-6-2-32 CBN B107 100% R1-05
Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
