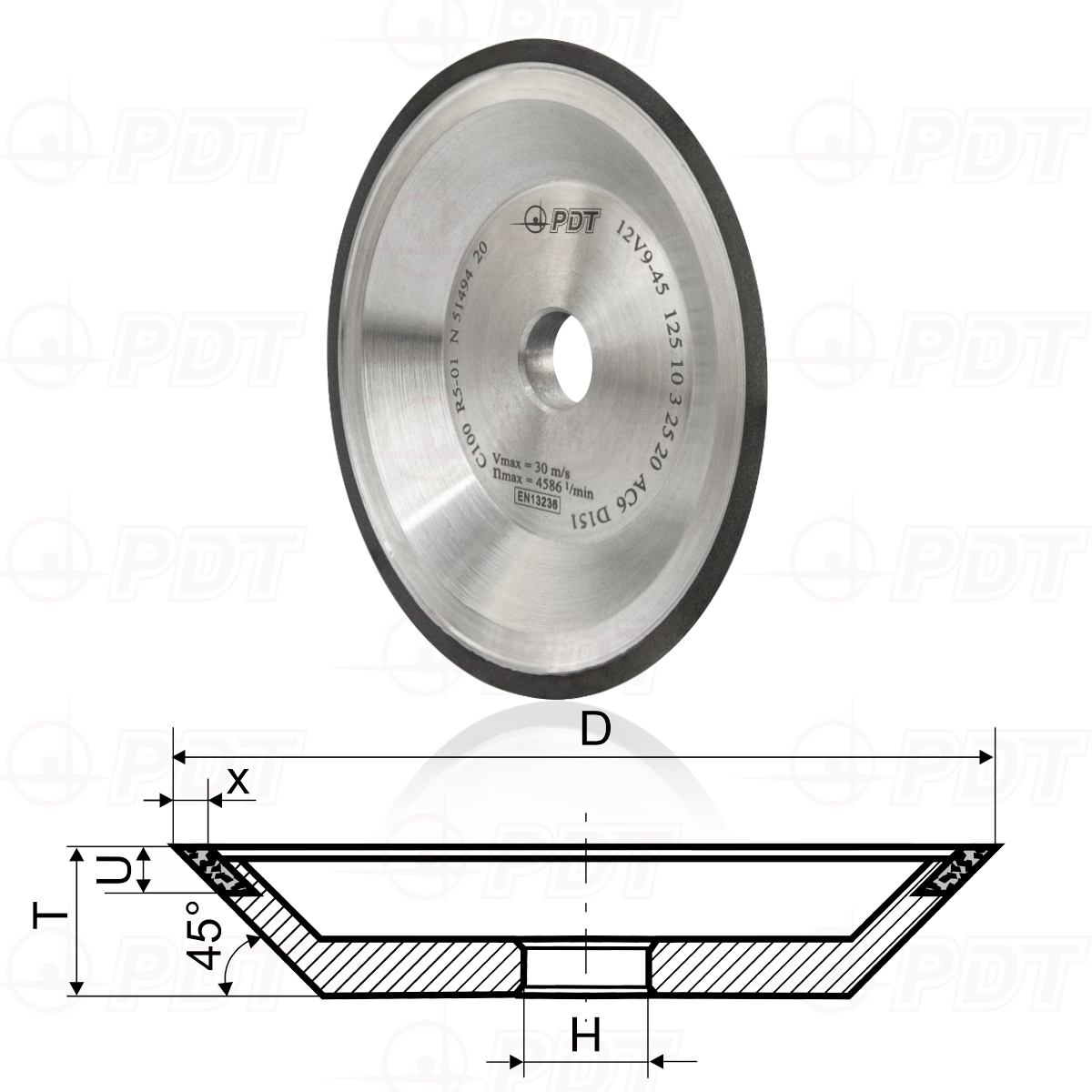

12V9-45. CUP GRINDING WHEELS
Application:

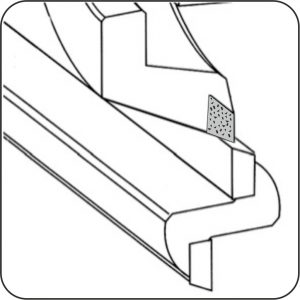

used for sharpening and finishing of back surfaces of cutting tools.
Example of an order for a wheel 12V9-45 (catalog number 4-1503), parameters 75-6-2-20-20 with diamonds AC6 grit size D76, concentration 100 %, with metal bond M2-01: 4-1503 12V9-45 75-6-2-20-20 AC6 D76 100% M2-01
The plant produces the above-mentioned shapes and dimensions with Cubic Boron Nitride (CBN).
Example of an order for a CBN wheel 12V9-45 (catalog number 4-1503) parameters 75-6-2-20-20, CBN type is CBN1, grit size B76, concentration of CBN is 100%, resin bond R1-05: 4-1503 12V9-45 75-6-2-20-20 CBN1 B76 100% R1-05
Attention: POLTAVA DIAMOND TOOLS produces other sizes of the given shape of diamond tool.
Download catalog
